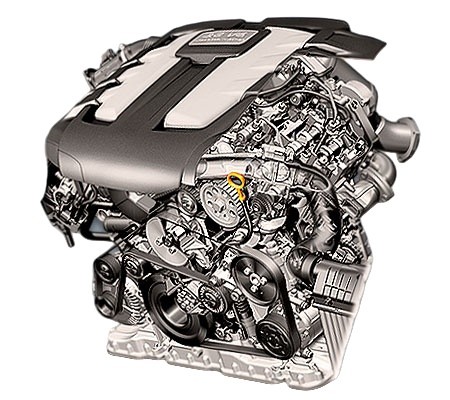

The 3.0-liter V6 diesel Porsche M05.9D was produced from 2009 to 2010 for the first-generation Cayenne (957) and practically does not differ from the M05.9E of the second Cayenne. It belongs to the EA896 diesel series and is essentially a copy of the Audi CASA engine.
Porsche diesel family: M05.9E, MCT.BA, MCR.CC, MCU.DB, M05.9D, MCD.UD, MCR.CA, MCT.BB, MCT.BC, MCV.VA, MCW.JA, MDB.UC, MCU.DC.
Specifications
| Production years | 2009-2010 |
| Displacement, cc | 2967 |
| Fuel system | Common Rail |
| Power output, hp | 240 |
| Torque output, Nm | 550 |
| Cylinder block | cast iron V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 91.4 |
| Compression ratio | 16.8 |
| Features | intercooler |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | Garrett GTB2260VK |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 8.2 |
| Fuel type | diesel |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Porsche Cayenne 2009) — city — highway — combined |
11.6 7.3 9.3 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 215 |
The engine was installed on:
- Porsche Cayenne 1 (9PA) in 2009 – 2010.
Disadvantages of the Porsche M05.9D engine
- Diesels of the EA896 series suffer from rapid wear of the high-pressure fuel pump, which then sends metal particles through the fuel system; this engine was subject to a recall;
- By about 200,000 km the timing chains may stretch, and replacing them is expensive;
- Weak points include the intake swirl flaps and the plastic coolant tee;
- Other problems are related to clogging of the particulate filter and EGR valve.
Frequently asked questions about the Porsche M05.9D
How much power does the Porsche M05.9D make?
The Porsche M05.9D develops 240 hp and 550 Nm of torque.
How much oil does the Porsche M05.9D take and which one?
Engine oil capacity: 8.2 liters. Recommended oil: 5W-30.
Does the Porsche M05.9D have a timing belt or chain?
The Porsche M05.9D uses a timing chain.
Is the Porsche M05.9D turbocharged?
Yes, the Porsche M05.9D is turbocharged (Garrett GTB2260VK).
Does the Porsche M05.9D need valve clearance adjustment?
No, the Porsche M05.9D has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Porsche M05.9D last?
The typical lifespan of the Porsche M05.9D is ~300 000 km with proper maintenance.
What is the fuel consumption of the Porsche M05.9D?
Porsche Cayenne 2009: city 11.6, highway 7.3, combined 9.3 L/100 km.
What cars was the Porsche M05.9D installed on?
Porsche Cayenne 1 (9PA) in 2009 - 2010.
What are the common problems of the Porsche M05.9D?
Diesels of the EA896 series suffer from rapid wear of the high-pressure fuel pump, which then sends metal particles through the fuel system; this engine was subject to a recall. By about 200,000 km the timing chains may stretch, and replacing them is expensive. All known problems.
