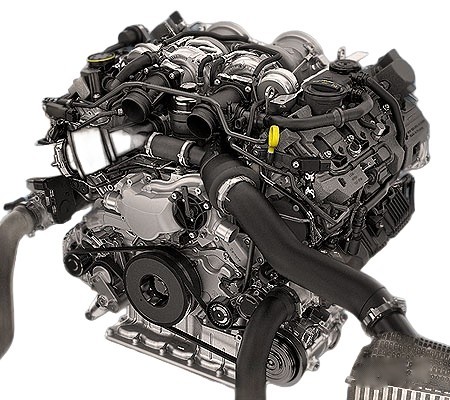

The 4.0-liter twin-turbo V8 Porsche MCV.DA was built from 2016 to 2020 for the most powerful versions of the second-generation Panamera. In the Panamera Turbo it produces 550 hp and 770 Nm, and as part of the hybrid powertrain of the Turbo S E-Hybrid the system output reaches 680 hp and 850 Nm.
EA825 family:
Panamera – MCV.DA, MCV.DD, MCV.DE, MDT.CA, MCV.DF, MDV.TA, MDV.TC, MDV.TD;
Cayenne – MDC.UA, MDC.UD, MDW.HB, MDW.HC, MDW.HA, MDW.NA, MDW.NF.
Specifications
| Production years | 2016-2020 |
| Displacement, cc | 3996 |
| Fuel system | direct injection |
| Power output, hp | 550 |
| Torque output, Nm | 770 |
| Cylinder block | aluminum V8 |
| Block head | aluminum 32v |
| Cylinder bore, mm | 86 |
| Piston stroke, mm | 86 |
| Compression ratio | 10.1 |
| Features | AVS |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on all shafts |
| Turbocharging | two BorgWarner B03G |
| Recommended engine oil | 0W-40 |
| Engine oil capacity, liter | 9.5 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Porsche Panamera Turbo 2018) — city — highway — combined |
21.5 11.3 13.2 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 230 |
The engine was installed on:
- Porsche Panamera 2 (971) in 2016 – 2020.
Disadvantages of the Porsche MCV.DA engine
- Low-quality petrol can cause detonation and even scuffing in the cylinders;
- The plasma-sprayed coating of the cylinder walls also suffers from bad fuel;
- The turbochargers last long only with frequent oil changes, ideally more often than the official interval;
- Owners complain about coolant leaks and failures of the fuel lift pump;
- The complex exhaust after-treatment system often throws errors.
Frequently asked questions about the Porsche MCV.DA
How much power does the Porsche MCV.DA make?
The Porsche MCV.DA develops 550 hp and 770 Nm of torque.
How much oil does the Porsche MCV.DA take and which one?
Engine oil capacity: 9.5 liters. Recommended oil: 0W-40.
Does the Porsche MCV.DA have a timing belt or chain?
The Porsche MCV.DA uses a timing chain.
Is the Porsche MCV.DA turbocharged?
Yes, the Porsche MCV.DA is turbocharged (two BorgWarner B03G).
Does the Porsche MCV.DA need valve clearance adjustment?
No, the Porsche MCV.DA has hydraulic lifters, so the valve clearances do not need to be adjusted.
How long does the Porsche MCV.DA last?
The typical lifespan of the Porsche MCV.DA is ~300 000 km with proper maintenance.
What is the fuel consumption of the Porsche MCV.DA?
Porsche Panamera Turbo 2018: city 21.5, highway 11.3, combined 13.2 L/100 km.
What cars was the Porsche MCV.DA installed on?
Porsche Panamera 2 (971) in 2016 - 2020.
What are the common problems of the Porsche MCV.DA?
Low-quality petrol can cause detonation and even scuffing in the cylinders. The plasma-sprayed coating of the cylinder walls also suffers from bad fuel. All known problems.
